Hardware Fasteners
For the mass production of hardware fasteners such as screws, nuts and gaskets, providing visual inspection solutions for dimensions, appearance, mixed parts and count verification.
Industry Production characteristics
How This Industry Produces Determines How Inspection Should Be Done
The visual inspection of hardware fasteners revolves around two things: first, making the most common defects in this industry image clearly and consistently; second, connecting the judgement result reliably into the production line. Common implementation constraints in this industry are "inspection volumes are large, with high demands on cycle time and cost-effectiveness"; "fasteners with similar specifications are hard to distinguish". Whether detection can be stable depends on material optical properties, minimum defect size, and cycle time, and is subject to the results of a measured sample trial.
Hardware fasteners are characterized by Mass production volumes are very large, unit price is low, inspection cost is sensitive. Visual inspection of this kind of product must balance detection capability with the economics of inspection speed.
Also, because the batch volume is large, The cumulative effect of escapes is significant: A defect rate of one in a thousand still means considerable rework at million-unit volumes.
Industry Inspection issues
Where problems actually occur on site
- Out-of-tolerance dimensions (length, outer diameter, head dimensions)
- Thread defects (missing threads, crossed threads)
- Surface defects (burrs, dents, poor plating)
- Mixed material (different specifications mixed in)
- Count does not match the packaging
Typical Inspection Objects
The Most Common Inspection Objects in This Industry
Typical Inspection Task
The judgments to be made on these objects
- Dimensional measurement and out-of-tolerance judgement
- Appearance defect identification
- Specification mix-up screening
- Count check
- Packaging content confirmation
Vision Inspection Challenges
Implementation constraints specific to this industry
- High inspection volume; cycle time and cost-effectiveness are demanding
- Fasteners with similar specifications are difficult to distinguish
- Plating is highly reflective with obvious batch-to-batch variation
- Small parts have unstable orientation during high-speed transfer
Choosing the right algorithm
Choose by Acceptance Criteria Form, Not by How Advanced It Is
Geometric Measurement
Dimensional acceptance criteria use sub-pixel measurement
Target Segmentation + Counting
Count verification
Classification
Specification and mixed-part troubleshooting
acquisition and light source
Optical conditions set the upper limit of feasibility
- Backlighting provides the most stable conditions for contour measurement and is the first choice for dimensional inspection
- For coating reflections, use diffuse light + angle control
- For high-speed conveying, a strobe light source is recommended to freeze the image
OK / NG Judgement
How results are judged and used
| Inspection Status | judgement | Interlocking Action |
|---|---|---|
| Dimensions and appearance meet the standard | OK | release |
| Out-of-tolerance dimension or appearance defect | NG | Reject and archive |
| Mixed Specifications | NG | Reject and prompt a loading check |
PLC and Automation Interlocking
How results connect to the production line
For high-volume production lines, it is recommended to output Defect type distribution, used to judge whether the problem is the tool, the mold or the loading.
When interlocked with the packaging mechanism, pay attention to the timing between the rejection and part discharge actions.
Applicable equipment
Common configuration forms for this type of inspection
Related Solutions
View the corresponding solution by inspection task
Common Question
The Questions Most Often Asked in This Industry
Is the Inspection Speed Sufficient for High Volumes?
The fastener industry commonly uses sorting machines with parallel multi-camera inspection. Speed depends on the number of inspection items required per piece and the algorithm complexity, and must be calculated against the actual cycle time; in these scenarios the demand for speed optimization is usually higher than for complex algorithms.
Do Plating Differences Between Batches Affect Inspection?
Yes. Batch-to-batch differences in plating change the reflection characteristics and may affect the stability of the acceptance criteria. We recommend including samples from several batches when establishing the criteria, and spot-checking regularly on the production line.
For visual inspection in this industry, what needs to be solved first?
The implementation constraints commonly seen in this industry center on: "inspection volumes are large, with high demands on cycle time and cost-effectiveness"; "fasteners with similar specifications are difficult to distinguish"; "plating is highly reflective and varies noticeably between batches". These constraints affect both the imaging solution and the cycle-time design. Normally a sample trial is needed to validate before the configuration is finalized.
How does the inspection result interlock with the production line?
For high-volume production lines it is recommended to output the distribution of defect types, to determine whether the problem is the tool, the die or the feeding. When interlocking with the packaging mechanism, pay attention to the timing coordination between the rejection and the part-drop actions.
What Equipment Configuration Does This Type of Inspection Generally Require?

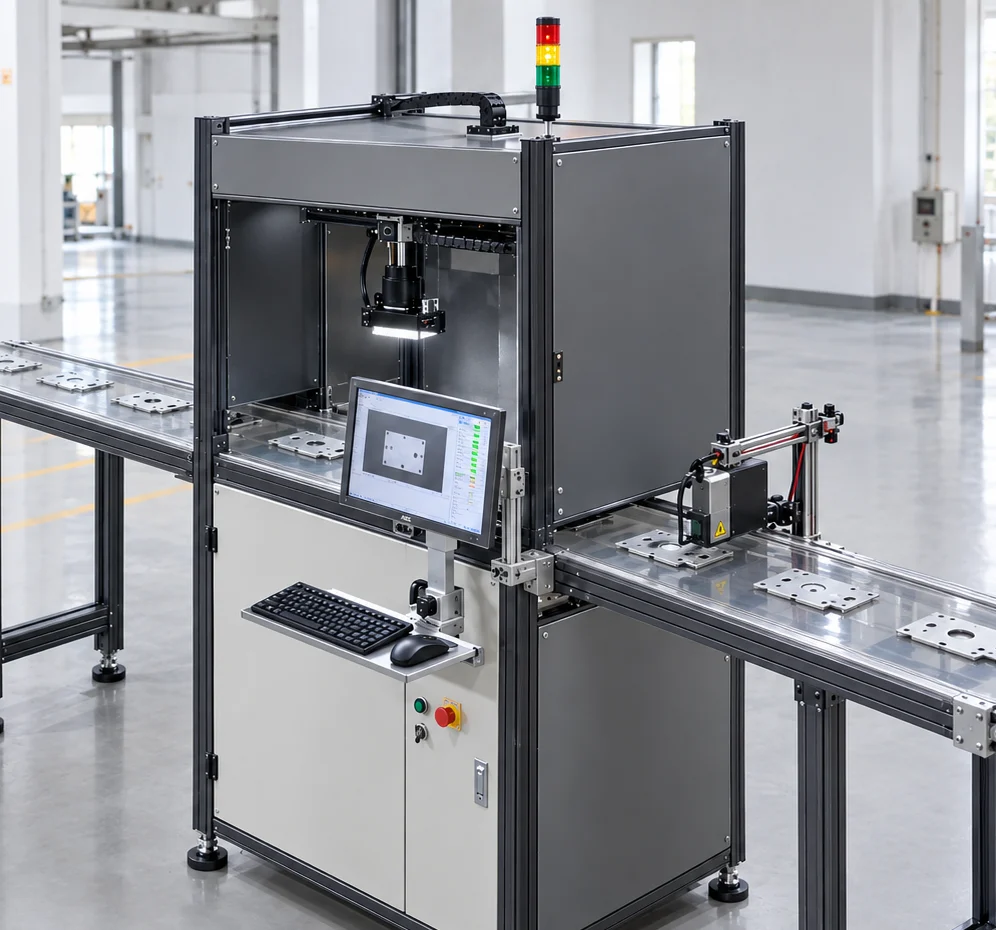

Common forms include: "high-speed inline inspection and sorting machine," "inspection cell with vibratory bowl / conveyor belt," "multi-camera combined dimensional + appearance inspection system." The specific machine model and quantity depend on the inspection area, minimum defect size and line cycle time, and must be confirmed against site conditions.
Which process steps in this industry benefit most from a visual inspection station?
The most common are: "dimensional measurement and out-of-tolerance judgement"; "appearance defect identification"; and "mixed specification screening". Which process steps to actually instrument depends on the cost of defects escaping downstream and of rework — the later a defect is found, the higher the cost.
How do we judge whether our product is suitable for visual inspection?
Please provide good parts and parts with known defects (including different batches), the similar specifications that must be distinguished, and the line speed requirement. In general, as long as the criteria can be stated clearly, defects can image clearly and consistently, and the cycle time matches the field of view, the project is feasible.
What inspection accuracy can be achieved?
Accuracy is not a fixed value that holds regardless of conditions. To be added — the minimum detectable size depends on the combination of field of view and camera resolution, and is also affected by illumination, lens and algorithm; the configuration must be derived from your minimum defect size and validated by measurement.
