TPU Laminated Fabric AI Visual Inspection Equipment
TPU laminated fabric AI visual inspection equipment targets multi-layer composites of TPU with fabric / film, performing inline inspection of delamination, bubbles, creases, scuffing, lamination misalignment and other defects, with OK/NG output and production line interlocking.
Materials Overview
Multilayer interface reflection + transparent layers make interlayer defects the hardest to capture
TPU laminated fabric AI visual inspection equipment images multi-layer composite material of TPU with fabric or film; the algorithm identifies defects such as delamination, bubbles, creases, scratches and lamination misalignment, outputs OK/NG results and interlocks with the production line.
TPU laminated fabric is made by bonding TPU (thermoplastic polyurethane) with multiple layers such as fabric and film, and is commonly used in protective gear, water sports and specialty apparel. Its difficulty lies in the "layers": interlayer interfaces reflect light, transparent or semi-transparent layers reduce defect contrast, and defects such as separation and air bubbles occur precisely between layers.
Defects specific to TPU lamination include delamination (separation between layers), bubbles, creases, indentations, scuffing, lamination misalignment (layer-to-layer offset), stains and pinholes. Of these, delamination and bubbles are safety hazards, but on the surface they may appear only as a slight bulge, requiring sufficient resolution and suitable illumination to image clearly.
For inspection, AI distinguishes normal layer texture from abnormal bulging / separation, and transparent layers need multi-angle or polarized illumination to suppress reflection. Changing the composite structure mainly means adjusting the illumination and recipe, not replacing the complete machine.
Applicable Type
TPU / Fabric Lamination
The focus is on delamination and lamination misalignment
TPU / Film Lamination
Transparent layer; the focus is on reflection suppression
High-Transparency TPU
Optically transparent; high cleanliness requirements
TPU Laminated Cut Pieces
Already cut, inspected piece by piece with defect locating
TPU Laminated Roll Stock
Continuous material feed, line-scan full-width inspection
Common defect
| Defect Types | Typical Manifestations | Inspection Focus Points |
|---|---|---|
| Delamination | Interlayer separation, bulging | Requires high resolution and illumination |
| Bubbles | Interlayer Bubbles | Focus on Transparent Layer |
| Crease / Indentation | Bend or crush marks | Low-angle light forms a clear image |
| Gouges | Linear surface damage | Suppress reflections from the transparent layer |
| Lamination Misalignment | Interlayer Offset | Requires Alignment Datum |
| Stain / Foreign Matter | Oil Stains, Particles | More visible on the transparent layer |
| Pinholes | Micro Penetration Holes | Transmitted or low-angle light |
| color difference | Inconsistency Within Batch | Stable Color Reference |
inspection Workflow
Complete chain from loading to judgment
- 01 TPU laminated material loading / roll unwinding or cut-piece feeding
- 02 Flattening and tension control
- 03 Triggered imaging (multiple illumination angles)
- 04 Interlayer datum positioning
- 05 Delamination and bubble segmentation
- 06 Defect classification and grading
- 07 Lamination alignment check
- 08 Synthesized OK / NG
- 09 Marking / rejection and image archiving
AI Inspection Principles
AI Visual Inspection Principles
TPU lamination inspection is difficult "between the layers": separation and air bubbles occur at the interface, showing on the surface only as slight bulging or a change in reflection. The algorithm builds a model of the normal layer texture and judges abnormal bulging / separation as defects; transparent layers need multi-angle or polarized illumination to suppress reflection. Imaging conditions determine the ceiling more than the algorithm does.
For illumination, diffuse light provides uniform lighting; low-angle light reveals creases, scratches and bulges; polarized or stripe light suppresses interface reflection from transparent / translucent layers, with multi-angle fill lighting where necessary.
For judgement, it is recommended to set delamination and bubbles as high-priority fatal defects with their own sensitivity. Specific thresholds must be measured with OK / NG samples; in particular, the visibility of defects in transparent layers must be validated at the site.
Applicable Industry

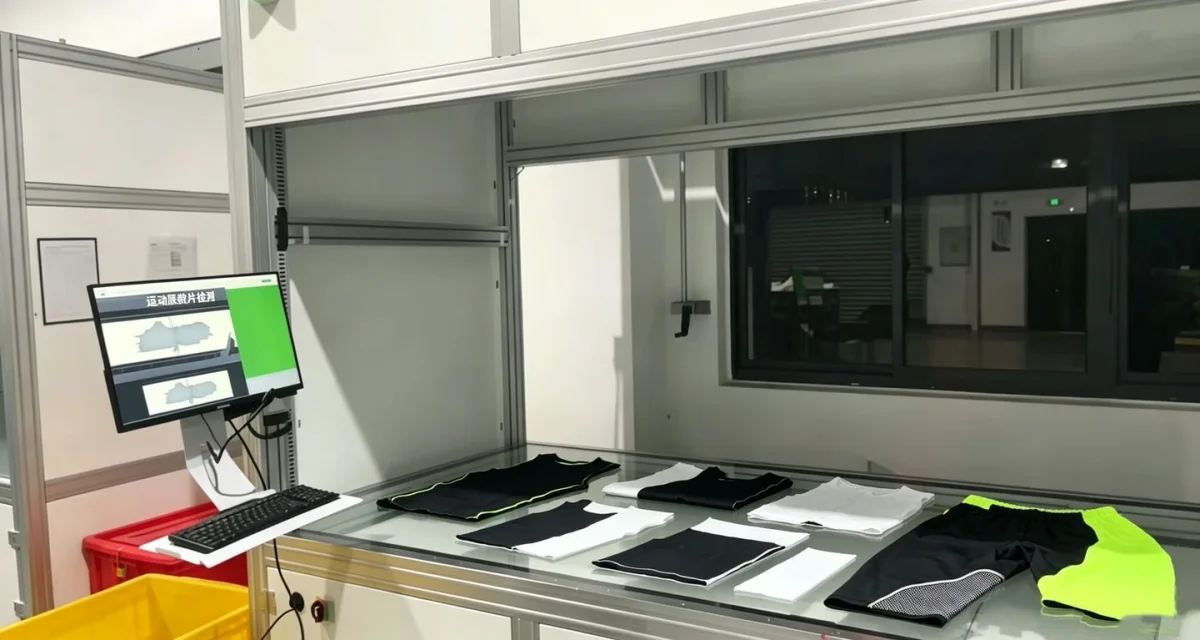

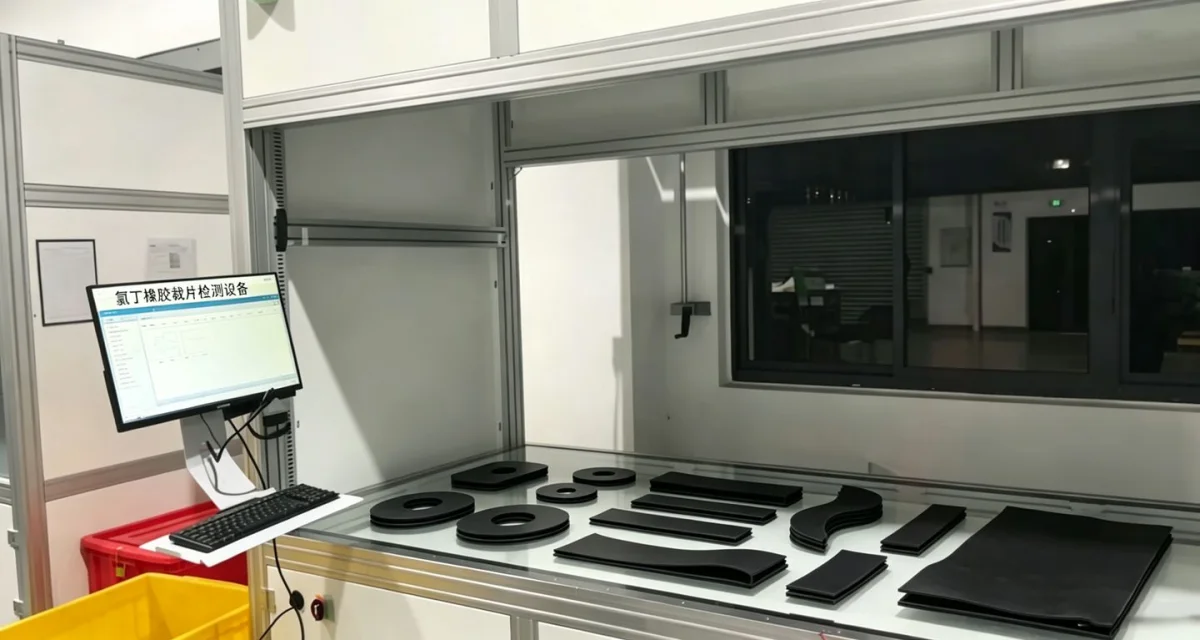

Applicable equipment
Common Question
Can Delamination in TPU Laminates Be Detected?
What If the Transparent TPU Layer Reflects Strongly?
Can Lamination Misalignment Be Detected?
How do you distinguish bubbles from normal thickness variation?
What is the inspection accuracy?
What samples are needed to develop a solution?
Can It Be Integrated Into an Existing Production Line?
Submit sample testing
Send OK and NG samples of TPU laminated fabric with different laminate structures and different transparency, and we will run measured tests on interlayer defects and recommend a reflection suppression approach.
Submitted successfully
We have received your sample testing request. A solution engineer will contact you within 1 business day via contact you.
Need to assess imaging conditions, defect criteria and cycle time item by item? Go to the Full Requirement Assessment →
Send Us Your Material and We Will Show You the Measured Results
Provide several OK and NG samples of the material, and a solution engineer will run actual imaging and judgement tests on the equipment to give a workable inspection configuration recommendation, rather than reading the datasheet alone.
